Brand: Nangong Vehicle, model: NQYPT-02, load capacity: 0.2 tons, platform size: 1.6 * 0.8 meters, net weight: 1 ton, color: engineering yellow;

Detailed parameters of 0.2 ton traction lifting platform trailer:

1. Load capacity: 0.2 tons, overall length * width: 2500 * 1350mm, platform size: 1600 * 800mm;

2. Zui large super lift height: 10000MM, traction speed: 0-30KM/H, lifting speed: 4-6 M/MIN;

3. Hydraulic system 0.75KW, platform lifting hydraulic pump motor: voltage AC22V;

4. Chassis single axle dual wheel, with 215/70R15 inflated tires;

5. Suspension plate shock absorption: brake with mechanical impact brake, four corners equipped with retractable support legs;

6. The lifting shear fork arm and trailer chassis are made of galvanized square tubes;

7. If a generator and lamp need to be installed, this accessory needs to be added separately (design subject to mutual agreement);

8. Vehicle color: Engineering yellow.

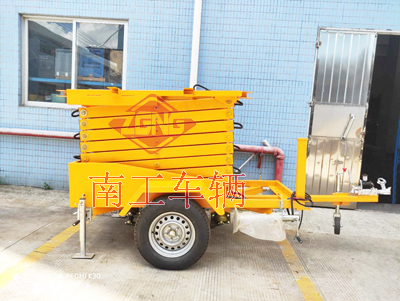

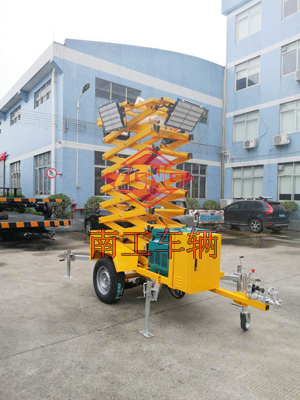

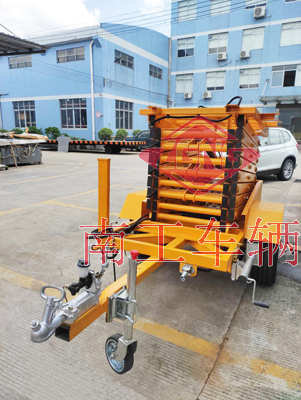

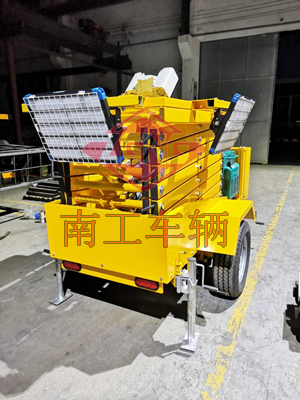

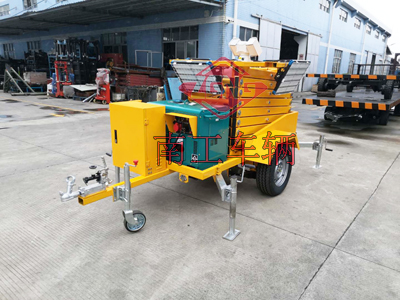

The 0.2 ton traction lifting platform trailer is customized by Nangong in large quantities. This tool trailer consists of a lifting platform and a skeleton type small trailer, which is better for moving high-altitude operations after arrival.

Application: This tool trailer is used for municipal maintenance, dock, logistics center cargo transportation, building decoration, etc. In addition, the flat trailer chassis can be towed for walking, and the working height and site have also been changed. It has the characteristics of light weight, mobility, simple operation, large working surface, and can cross obstacles for high-altitude work.
